ARKALUMEN APT-FW
Key Product Features
Enables adjustable CCT feature in constant current drivers
DIP switches allow selection between 8 output ratios calibrated to 8 different CCT levels
No auxiliary power required
Independent of dim method used
No perceivable flicker
Set the Fixture CCT with DIP Switches
APT-FW controllers are drop-in ready with simple wiring, enabling up to 8 CCT settings to be selected using 3 DIP switches. The controllers split the current received from a single channel constant current driver into two channels based on preconfigured ratios set by the DIP switches.
Product Information

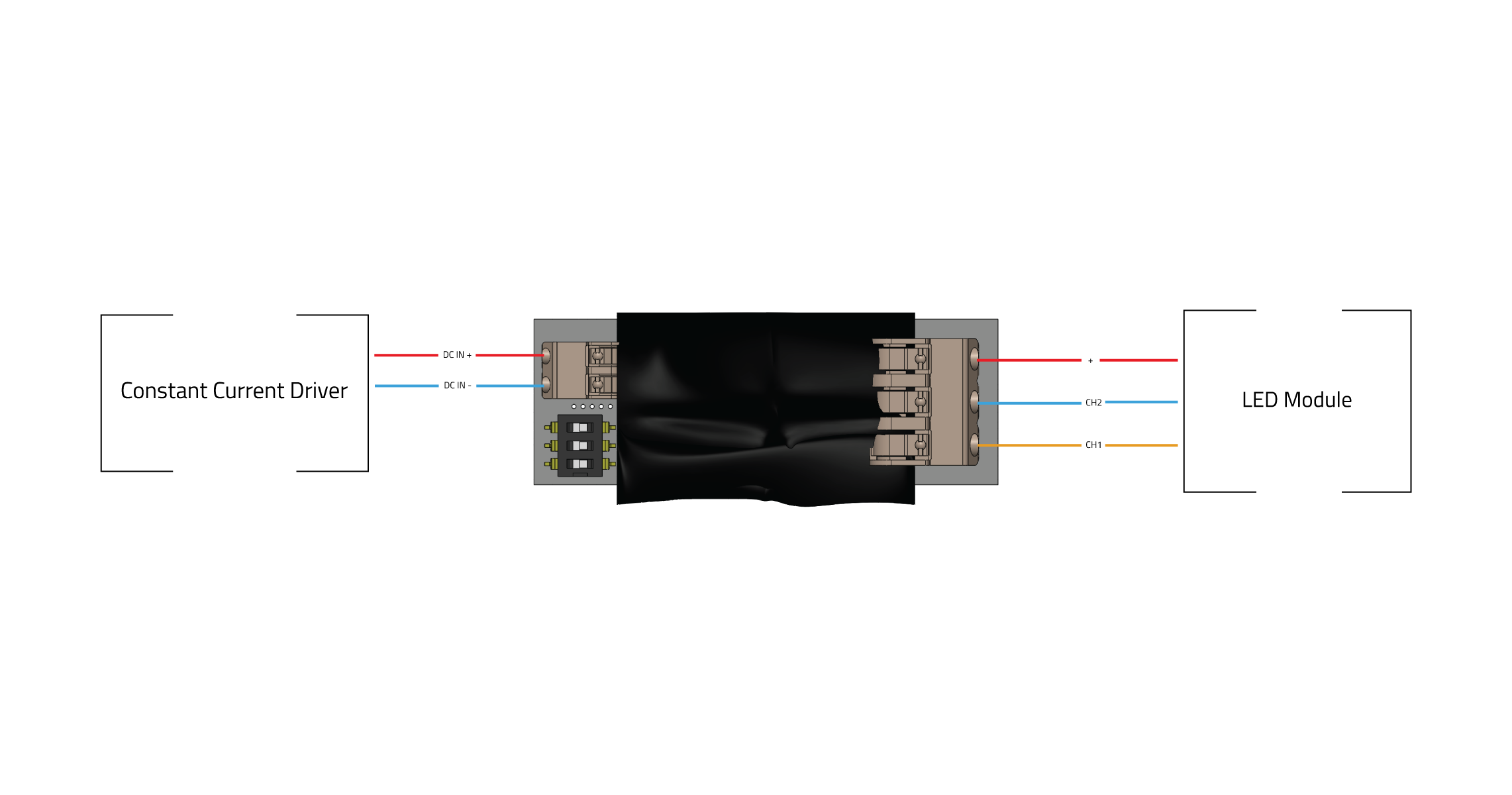

System Architecture
No programming required
No user interface
Optimal use with BOLD LED modules
Product Specs
2 channels
100W Max Output
Key Markets
Architectural
Residential
Product Chart
| APT Controller | Input Driver | # of Output Channels | Control Protocol | Form Factor | Max Wattage | Max Voltage | Max Current per channel | Max Current Total |
| APT-CC-VFW | CC | 2 | Dip Switch | Wrapped | 100W | 60V | 3,200 mA | 4,100 mA |

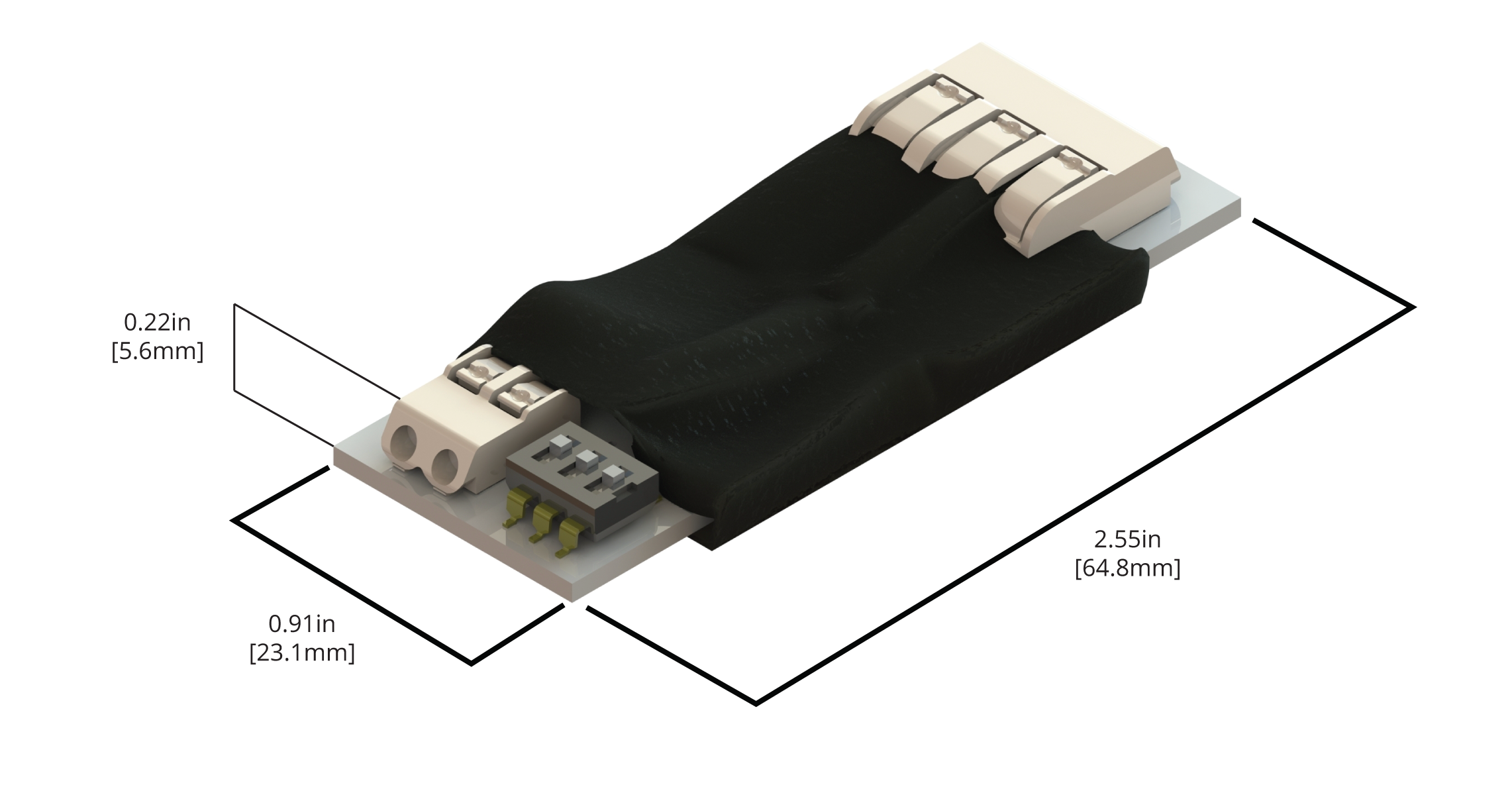

Mechanical Diagram
