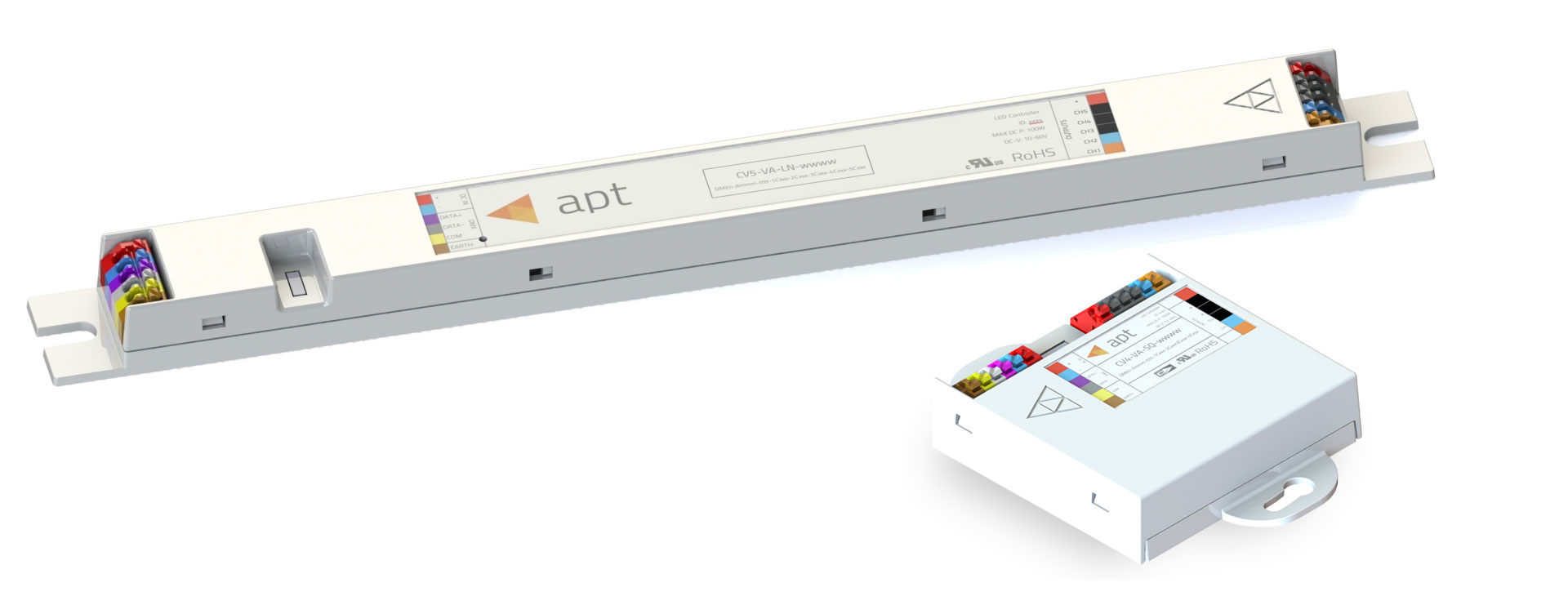

ARKALUMEN APT-CV4/5
Key Product Features
Converts constant voltage DC source to up to 5 constant current outputs
Independent control of each channel
No perceivable flicker
Programmable dim-to-off, CCT range, CCT mapping, intensity mapping
Precise Multi-Channel Control
APT-CV4/5 controllers output up to 5 precisely controlled constant current outputs from a constant voltage DC source. Each of the channels are managed independently and can operate with LED channels with different forward voltages. Perfect for RGBWW, RGBW or RGB applications.
Product Information
Control Protocol
DMX/RDM
DALI-2 DT8
Casambi BLE
Form Factor
Linear
Square
Product Specs
4 or 5 channels
100W Max Power
10-60V
Key Markets
Healthcare
Horticulture
Film & Television
Architectural
Product Chart
| APT Controller | Input Driver | # of Output Channels | Control Protocol | Form Factor | Max Wattage | Max Voltage | Max Channel Current | Max Total Current |
| APT-CV5-VA-LN | CV | 5 | DMX/RDM | Linear | 100W | 60V | 3,200 mA | 4,100 mA |
| APT-CV5-VWC-LN Casambi | CV | 5 | BLE | Linear | 100W | 60V | 3,200 mA | 4,100 mA |
| APT-CV4-VA-SQ | CV | 4 | DMX/RDM | Square | 100W | 60V | 3,200 mA | 4,100 mA |
| APT-CV4-VWC-SQ Casambi | CV | 4 | BLE | Square | 100W | 60V | 3,200 mA | 4,100 mA |
Programmable Feature Chart
The following features are enabled using Arkalumen’s APT Programmer
| APT Controller | Control Protocol | Retrieve Settings | Dim-to-Warm | Dim-to-Off | Fade-to-Off | Set Max Current | CCT Ranges | CCT Mapping | Intensity Mapping |
| APT-CV5-VA-LN | DMX/RDM | ||||||||
| APT-CV5-VWC-LN Casambi | BLE | ||||||||
| APT-CV4-VA-SQ | DMX/RDM | ||||||||
| APT-CV4-VWC-SQ Casambi | BLE |
Mechanical Diagrams

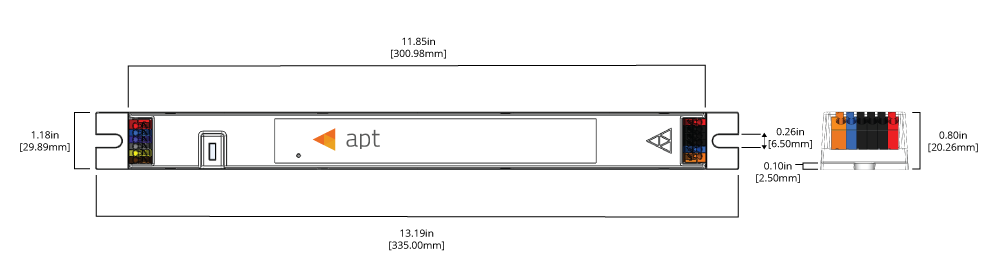

Linear

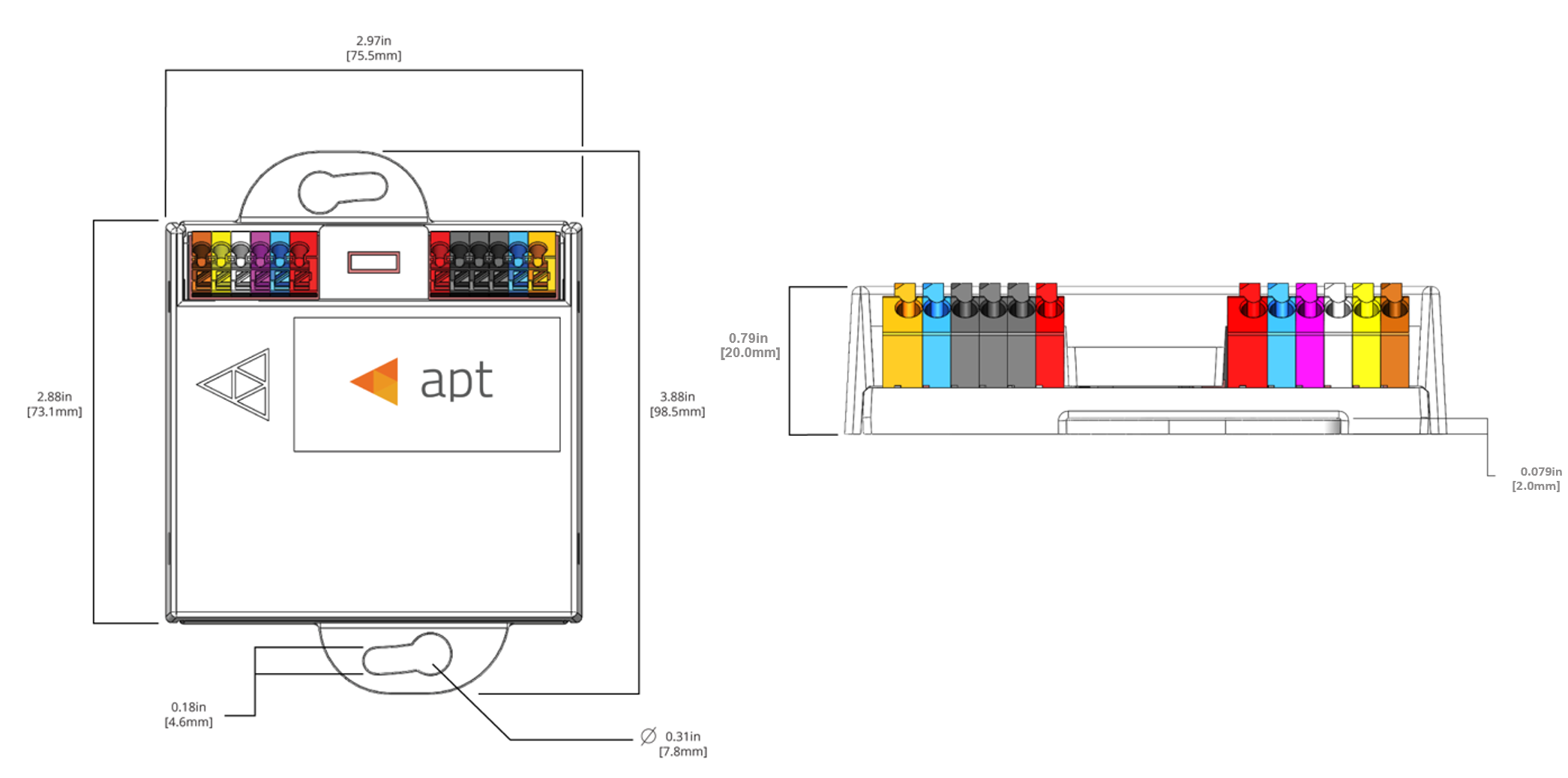

Square
